SHAPE J-Box Camera Power and Charger for Canon 5D/7D, Blackmagic Pocket Cinema 4K/6K/LP-E6 Series

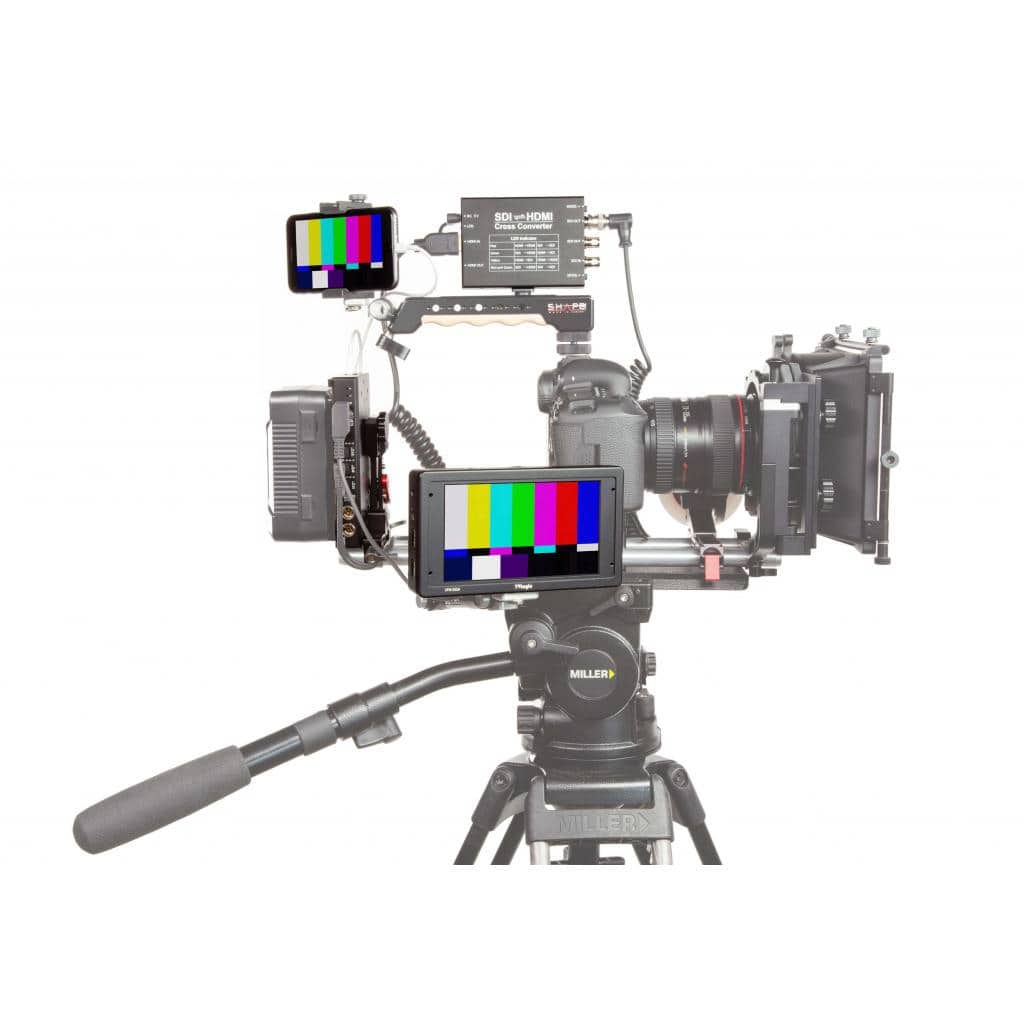

Use the J-Box Camera Power and Charger from SHAPE to power your Canon 5D, 7D, or Blackmagic Pocket Cinema 4K, 6K, LP-E6 series camera and other accessories simultaneously with a V-Mount battery (not included) and continuous AC power. Multiple LED indicators on the J-Box show battery and power status. The J-Box is designed to power your camera while also powering items like a monitor, smartphone, or lights, and when plugged into an AC outlet with the included AC adapter, you can remove the battery safely without powering down your camera. The J-Box has a V-Mount battery plate, and on the side, there are four power outputs: one 20W, 5V/4A, one 40W, 8V/5A, one 60W, 12V/5A, and one D-Tap 100W, 16.8V/6A. On top there's a 5V/4A USB Type-A port to power your smartphone or USB accessory. You can power multiple items simultaneously with up to 100W of total power consumption. There are also threaded holes on the back of the plate for mounting options. The charger comes with a cable connector to power your Canon 5D, 7D, or Blackmagic Pocket Cinema 4K, 6K LP-E6 series camera, an 8V output cable, a 15 mm rod mount to use with your 15 mm LWS rod system, a removable Delta plate, and an Allen wrench and screws for mounting your gear. There is also a 15 mm Rod Mount with a knob system to lock and adjust the position of the J-box unit.

• BXLPE

• 5.51 x 3.54 x 0.79 in | 14.00 x 8.99 x 2.01 cm

• 2.31 lbs | 1.05 kg

• Black

• Canon 5D
• Canon 7D
• Blackmagic Design Pocket Cinema 4K
• Blackmagic Design Pocket Cinema 6K
• Blackmagic Design Pocket Cinema LP-E6

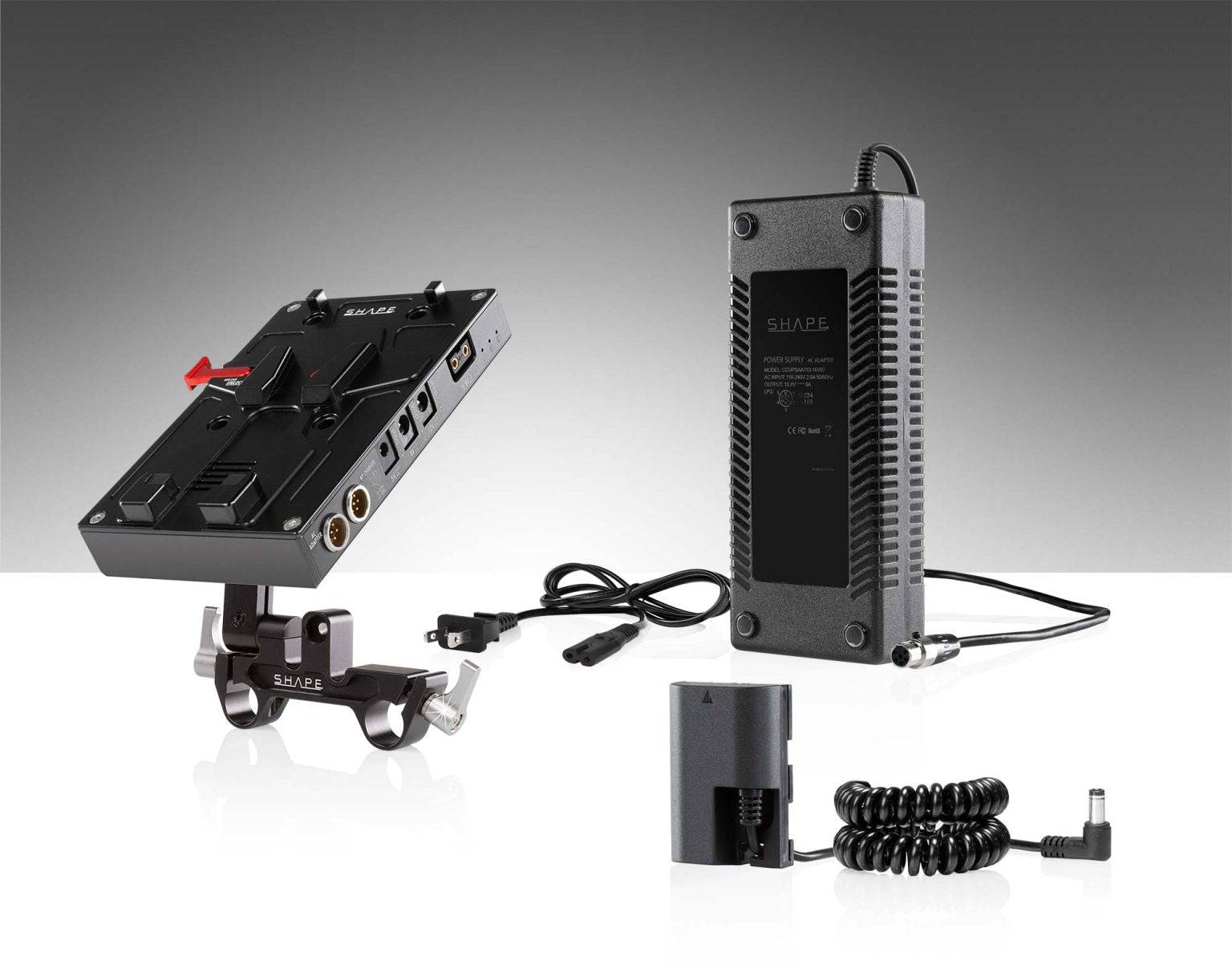

• 1 x J-Box Power and Charger V-Mount
• 1 x Power Supply
• 1 x AC Power Cable

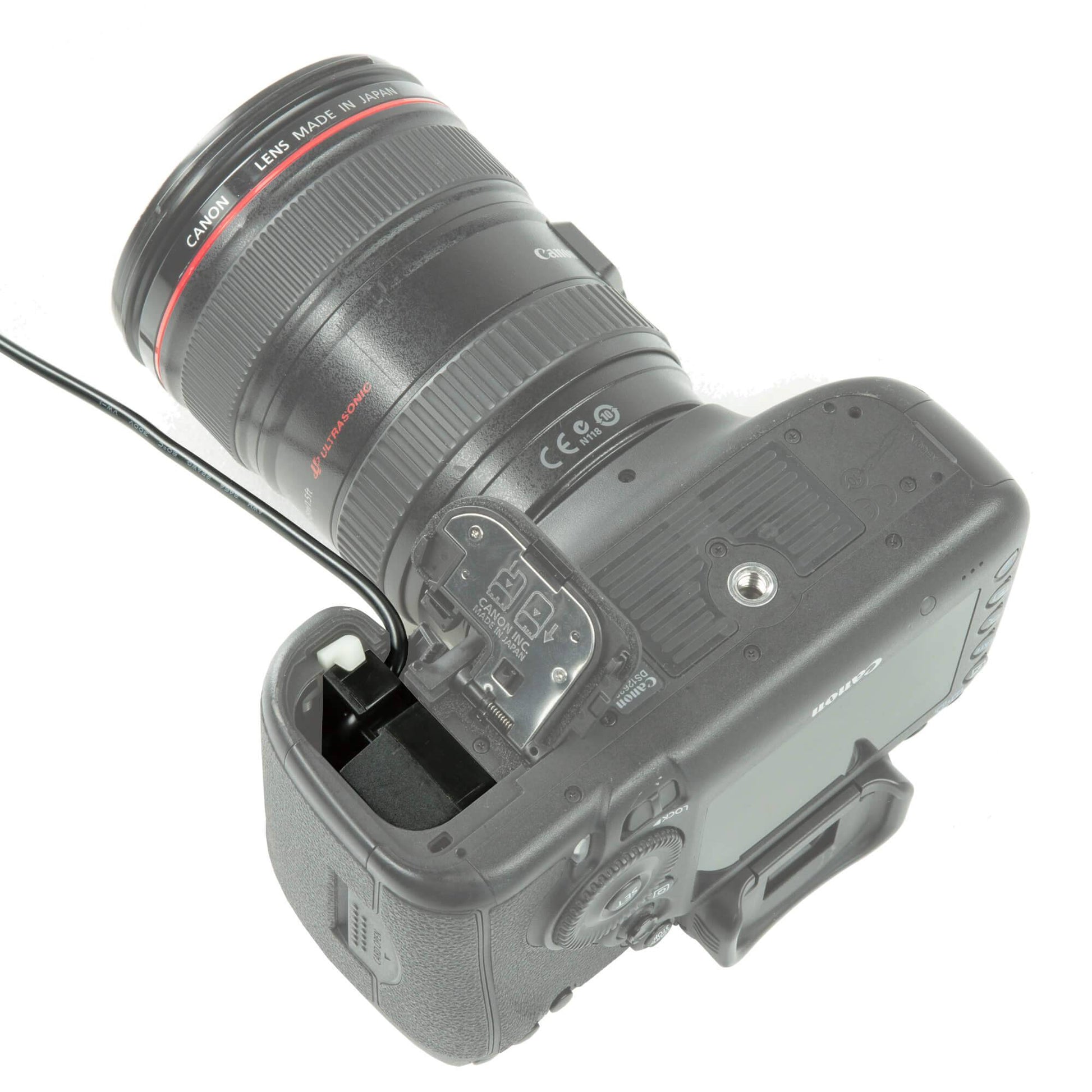

• 1 x Cable Connector

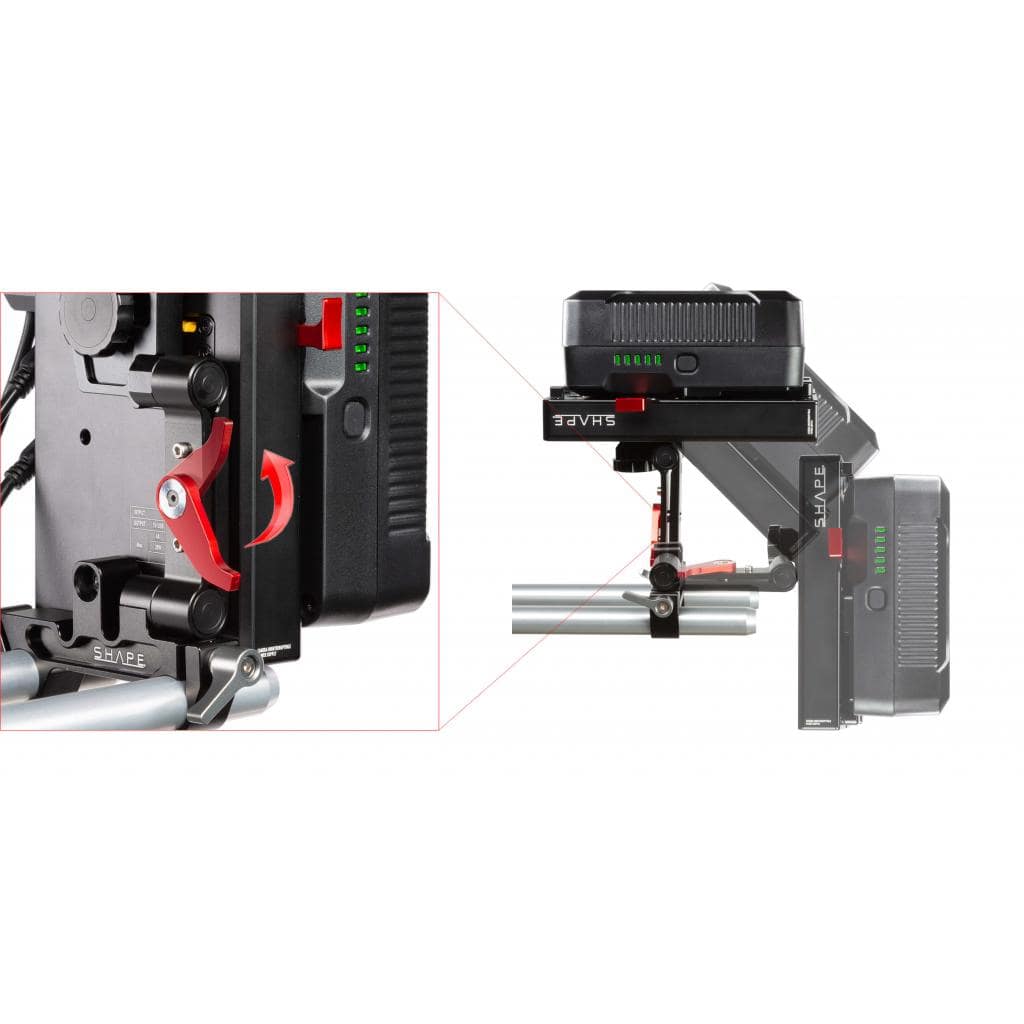

• 1 x 15 mm Rod Mount Device
• 1 x Removable Delta Plate
• 1 x Tool Box Kit (Allen Key and Mounting Screws

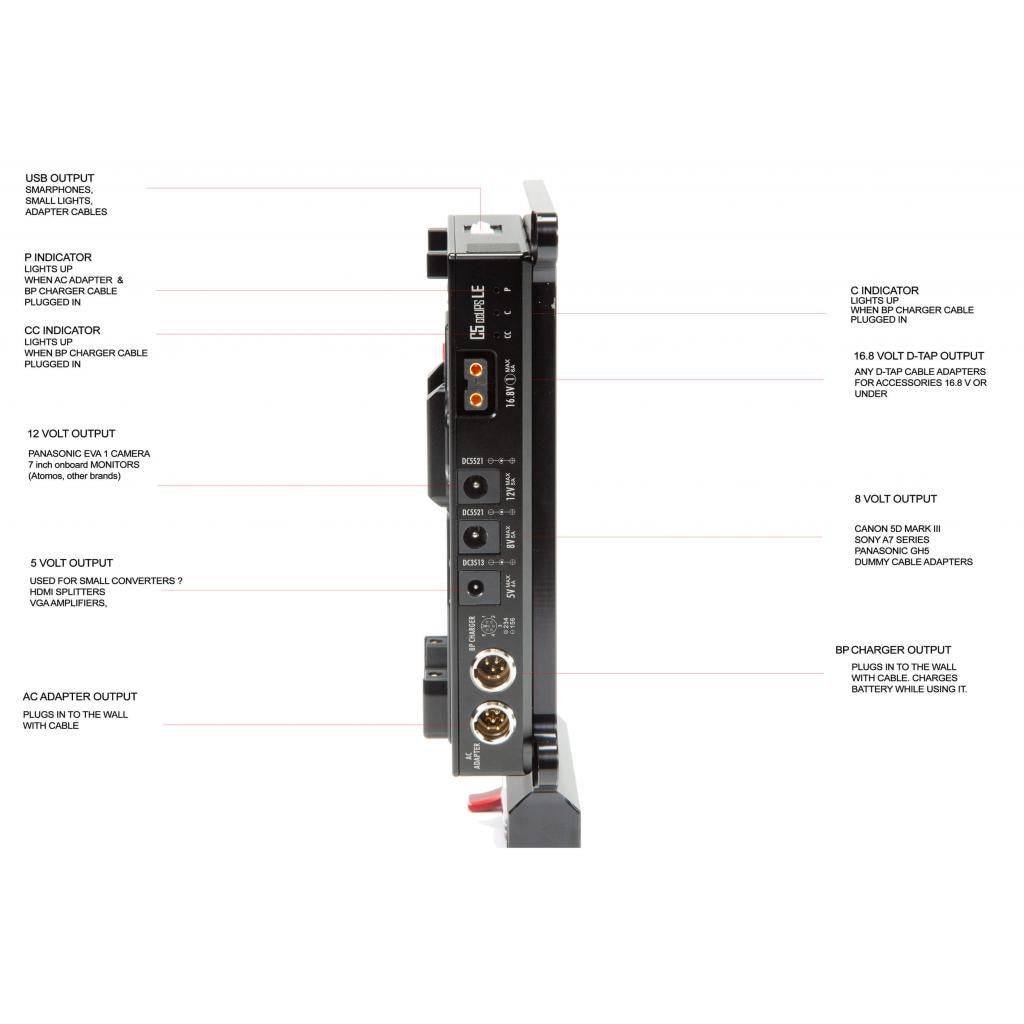

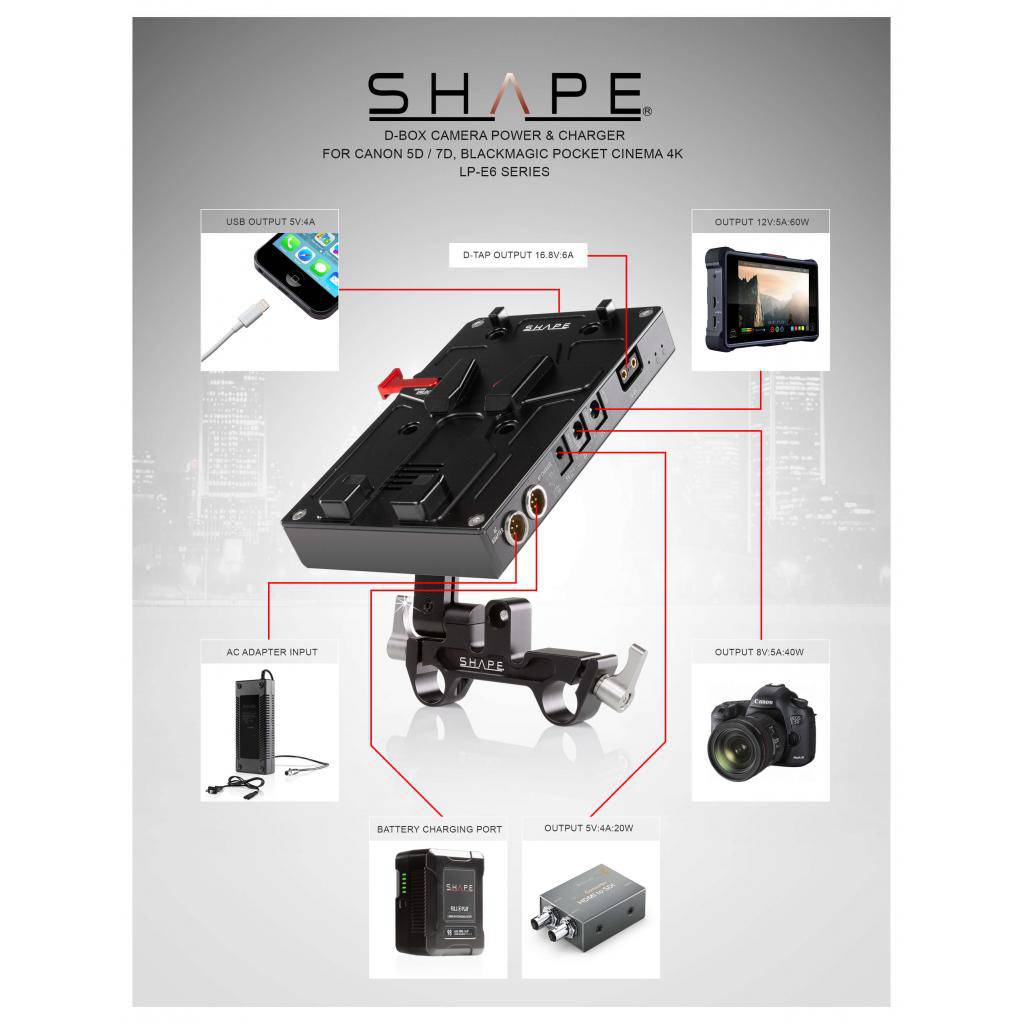

• 5 outputs:
• 1 x 5V : 4A : 20W
• 1 x 8V : 5A : 40W
• 1 x 12V : 5A : 60W
• 1 x 16.8V : 6A : 100W

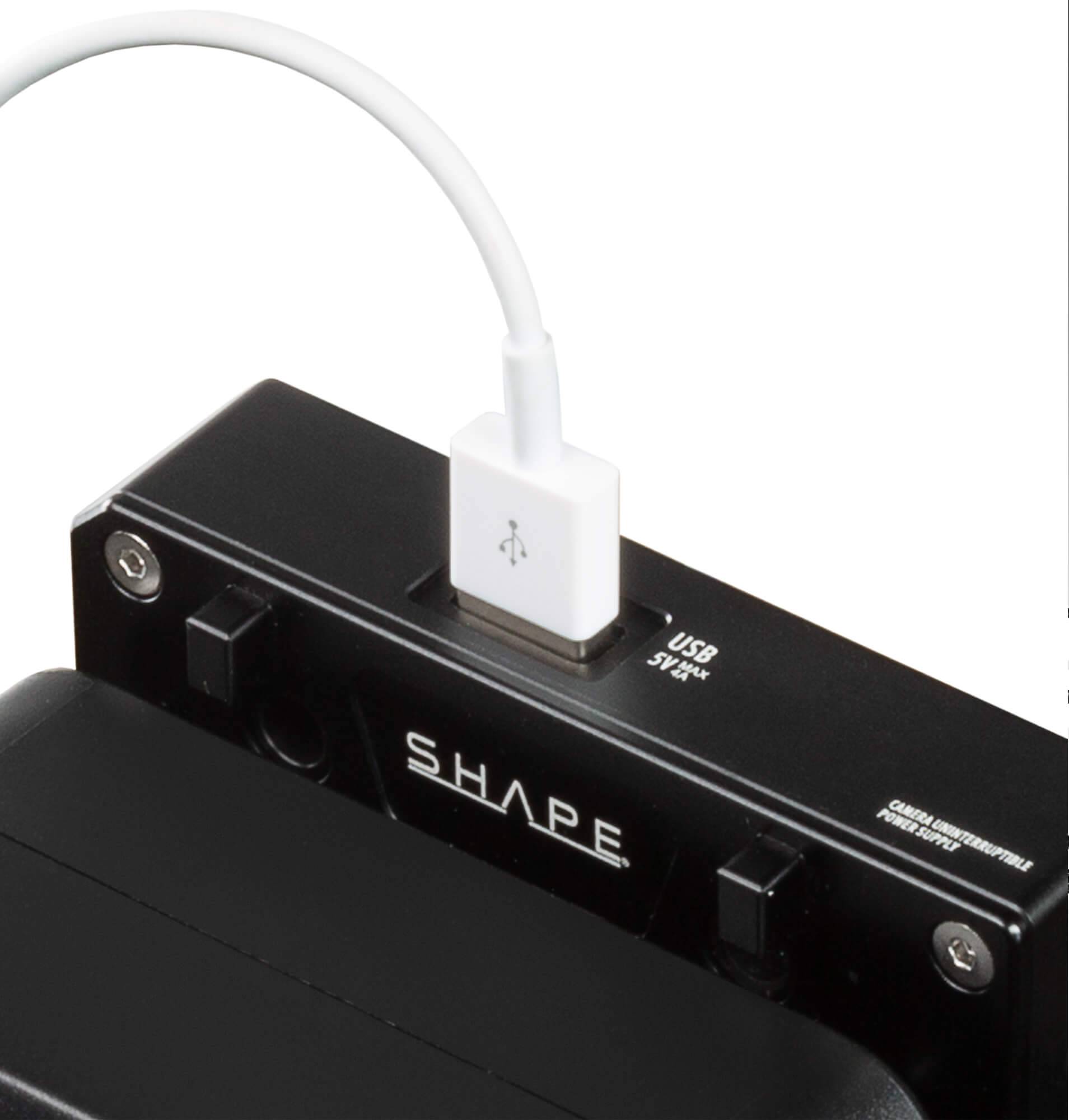

• 1 x USB 5V : 4A

• 5 V

• 4 to 104°F | -15 to 40°C
