SHAPE Revolt Sliding Dovetail Riser

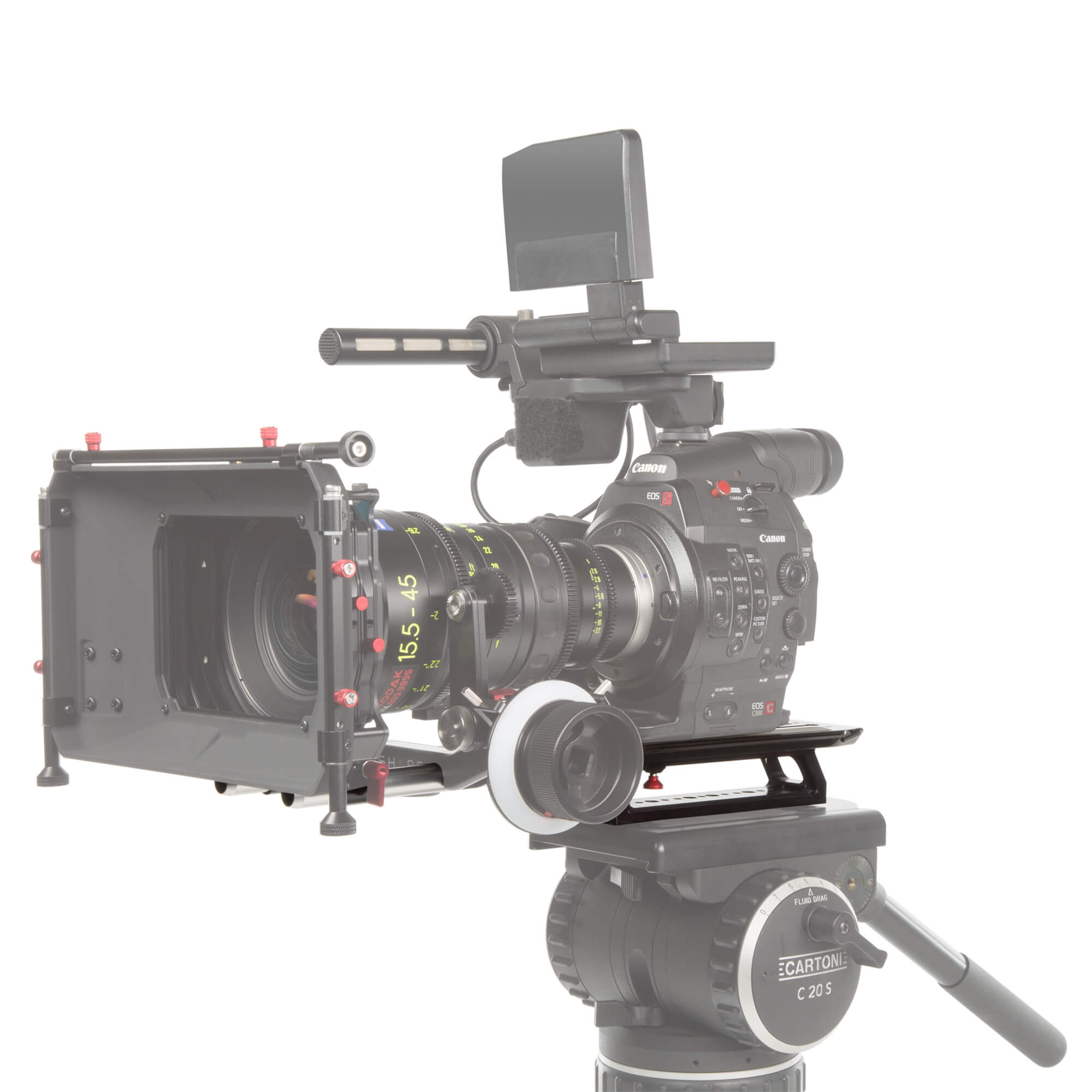

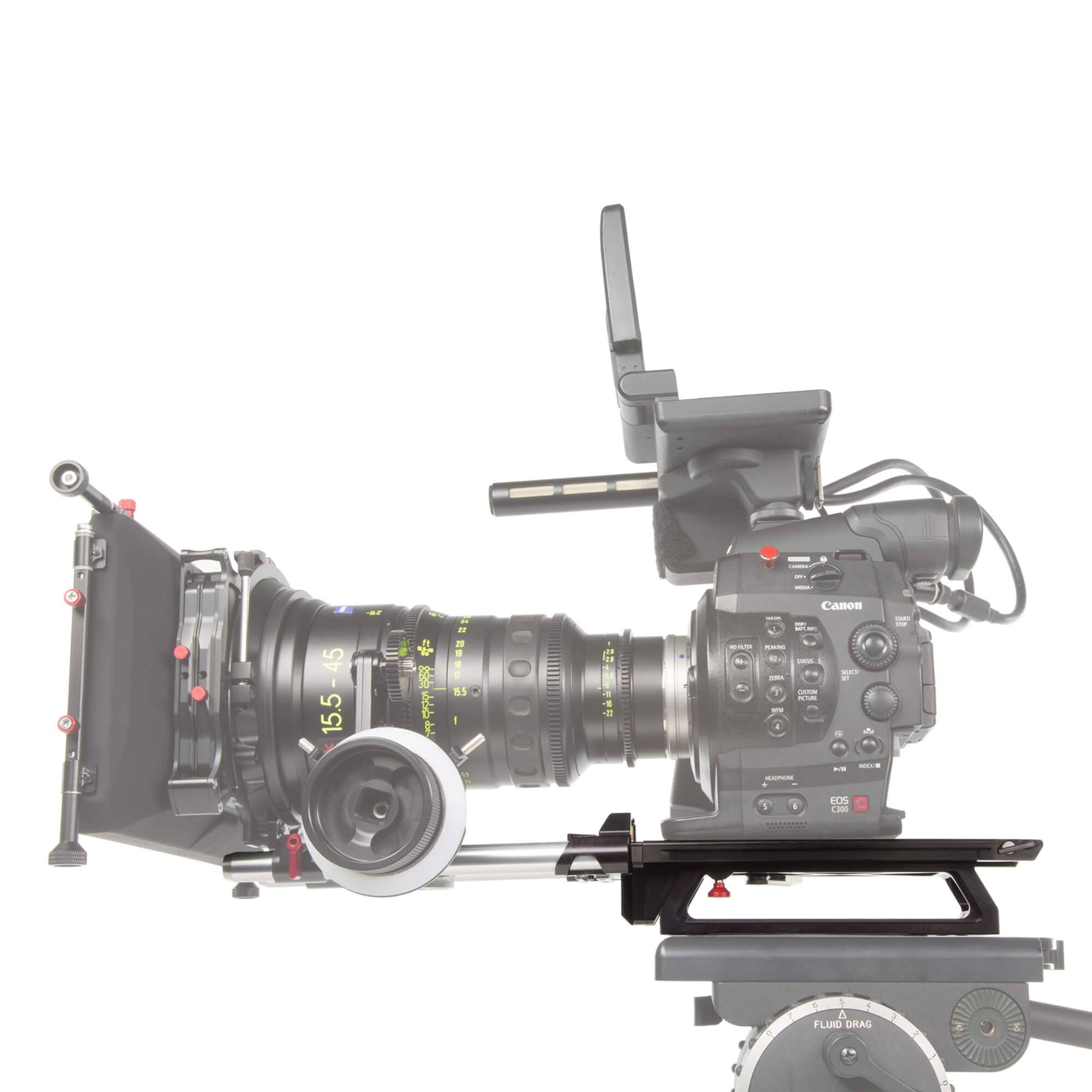

The bridge plate sliding feature let you insert & slide the SHAPE REVOLT dovetail riser. The dovetail is designed with the ‘standard compatibility for the Arri Amira’, allowing you to quickly and easily mount your camera directly onto the riser. Front to Back Sliding Plate. It allows quick positioning of your camera accessories for an optimal adjustment of your camera’s center of gravity and weight distribution. Match your camera’s optical center. Being able to adjust the height of your rod bloc to match your camera’s optical center is exactly what you can do. 15mm lightweight rod bloc in the front of the Baseplate with a pair of 15 mm 4″ rods. The safety pins prevent the upper plate from sliding. The ratchet knob applies an optimal pressure to the rods and increase the strength of your rig. Compatible with the following cameras: Arri (Amira and Alexa Mini), Sony (FS7, FS7M2, F5, F55, EX1, EX3), Canon (C200, C300, C300M2, C700), Panasonic (EVA1, Cinema Varicam LT 4k S35, Panasonic Ag-af100, Panasonic Ag-af101 Varicam LT, Panasonic P2), Blackmagic (Ursa Mini), RED camera and many other camera models with interchangeable lenses.

• RSDR

• 9.75 x 3.25 x 1.75 in | 24.77 x 8.26 x 4.45 cm

• 1.30 lbs | 0.59 kg

• Black
• Aluminium Gray
• Red

• 15 mm LWS Compatible
• RED DSMC2
• Arri (Amira and Alexa Mini)
• Sony Venice, FS7, FS7 II, FS5, FS5 II, EX1, EX3
• Canon C200, C300, C300 MKIII, C700
• Panasonic (EVA1, Cinema Varicam LT 4k S35, Panasonic Ag-af100, Panasonic Ag-af101 Varicam LT, Panasonic P2)
• Blackmagic Ursa Mini
• Also compatible with many other camera models with interchangeable lenses

• 1 x Bridgeplate
• 1 x Sliding Plate with 15 mm Rod Bloc System
• 2 x 15 mm Rods 4 inches
